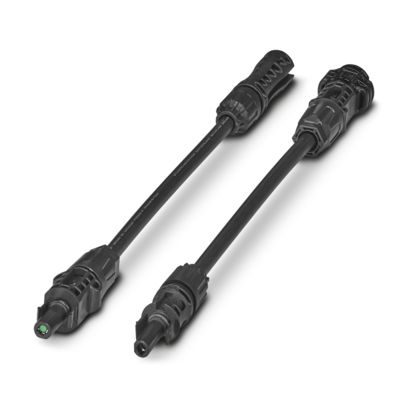

Phoenix Contact PV-AS-MC4/6-150-MN-SET1

• Type: Photovoltaic Adapter Set
• Application: Electrical connection and adaptation for photovoltaic (PV) systems
• Series: SUNCLIX

• Design: Adapter
• Cable Length: 150 mm
• Rated Current: 35 A
• Rated Voltage: 1000 V DC / 1500 V DC

• Maximum Load Current: 35 A (at 85°C)
• Contact Resistance: < 1 mΩ (including cable)

• Material: Copper (Cu) contact with silver (Ag) plating
• Housing Material: PPE
• Seal Material: EPDM
• Color: Black

• Degree of Protection: IP68 (plugged in), IP20 (unplugged)
• Temperature Range: -40°C to +85°C
