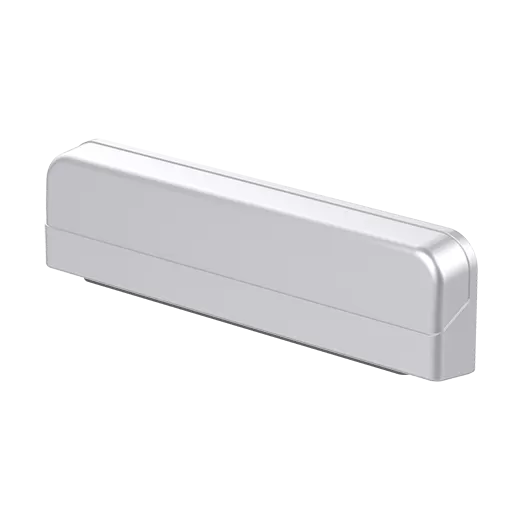

Autonics ADS-AE Automatic Door Sensor Slug

• Diffuse reflective sensing type designed for automatic door detection
• Mounting height: 2.0 to 2.7 m
• Infrared LED light source (850 nm modulated) for reliable detection
• Power supply: 12–24 VAC ±10% (50/60 Hz) or 12–24 VDC
• Power consumption: Max. 2 VA
• Control output: Relay (SPST 1a)
• Front sensing area: 7.5°, 14.5°, 21.5°, 28.5° (4-step setting)
• Left/Right sensing area: Adjustable elimination zones
• Output holding time: Approx. 0.5 sec
• Stationary sensing holding time: Selectable (2 sec / 7 sec / 15 sec)
• Ambient illumination: Max. 3,000 lx
• Operating temperature: -20°C to 50°C
• Protection rating: IP50
• Connection type: Connector wire connection
• Accessories: 2.5 m cable, mounting screws, mounting template
• Weight: Approx. 320 g
