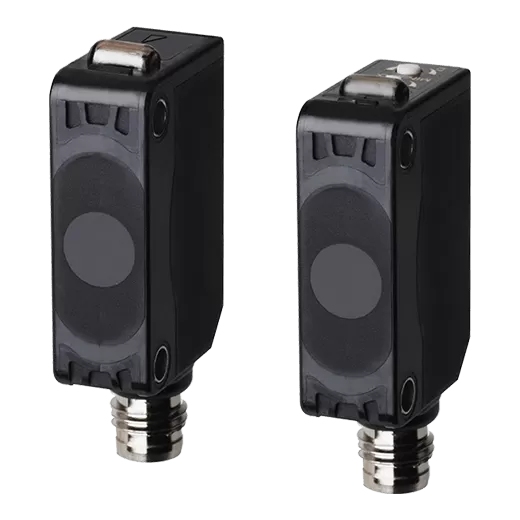

Sensing type : Through beam type
Sensing distance : 15 m
Sensing target : Opaque material min Ø 12 mm
Light source : Infrared LED 850 nm
Response time : Max 1 ms
Power voltage : 12 to 24 VDC ±10 % ripple P P max 10 %
Current consumption : Emitter Receiver max 20 mA
Sensitivity adjustment : Sensitivity adjuster
Operation mode : Light ON Dark ON set by switch
Control output : PNP open collector
Connection type : Connector type M8
Environment Ambient illumination : Sunlight max 11000 lx Incandescent lamp max 3000 lx received illumination
Environment Ambient temperature : -25 to 55 ℃ storage -40 to 70 ℃
Protection structure : IP67
Environment Ambient humidity : 35 to 85 % RH storage 35 to 85 % RH
Material : Case polycarbonate acrylonitrile butadiene styrene LED cap polycarbonate sensing part polymethyl methacrylate bracket SUS304 stainless steel bolt steel chromium molybdenum nut steel chromium molybdenum sleeve brass Ni plate
Accessories : Fixing bracket M3 bolts 4 M3 nuts 4 adjuster driver
Weight : Approx 45 g approx 20 g
