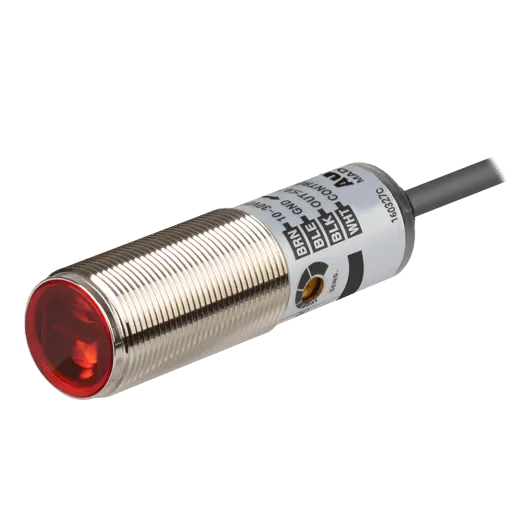

Autonics BRQM100-DDTA Photoelectric Sensor

Sensing Type: Diffuse reflective type
Sensing Distance: 100 mm
Sensing Target: Opaque, Translucent material
Light Source: Infrared LED (850 nm)
Response Time: Max. 1 ms
Power Voltage: 10–30 VDC ±10% (Ripple P-P: Max. 10%)
Current Consumption: Max. 30 mA
Sensitivity Adjustment: Sensitivity adjuster
Operation Mode: Light ON / Dark ON (set by control wire)
Control Output: NPN open collector
Connection Type: Cable type (Ø4, 2 m)
Ambient Illumination: Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination)
Ambient Temperature: -25 to 60 °C, Storage: -30 to 70 °C
Ambient Humidity: 35 to 85% RH, Storage: 35 to 85% RH
Protection Structure: IP67 (IEC standard)
Hysteresis (Distance): Max. 20% at rated sensing distance
Material: Case: Brass, Ni-plated, Lens & Lens Cover: Polymethyl methacrylate (Acrylic)
Weight: Approx. 150 g (Approx. 70 g)
