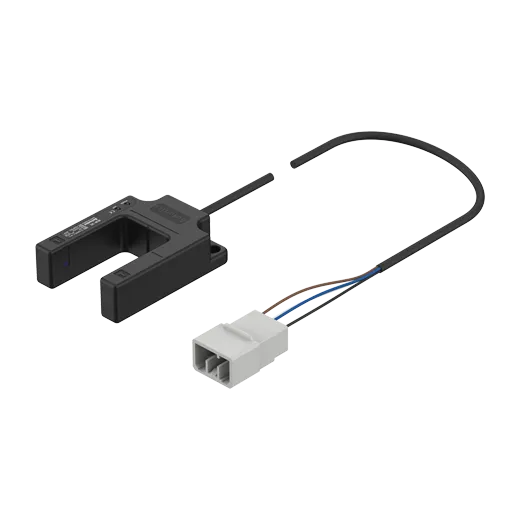

Autonics BUP-50-E Photoelectric Sensor

Sensing Type: Through-beam type
Sensing Channel: 1-channel
Sensing Distance: 50 mm
Sensing Target: Opaque material of min. Ø4 mm
Light Source: Infrared LED (940 nm)
Response Time: Max. 1 ms
Power Voltage: 12–24 VDC ±10% (Ripple P-P: Max. 10%)
Current Consumption: Max. 30 mA
Sensitivity Adjustment: Fixed
Operation Mode: Light ON / Dark ON (set by control wire)
Control Output: NPN open collector
Connection Type: Cable connector type
Ambient Illumination: Sunlight: Max. 11,000 lx, Incandescent lamp: Max. 3,000 lx (received illumination)
Ambient Temperature: -25 to 65 °C, Storage: -25 to 70 °C
Ambient Humidity: 35 to 85% RH, Storage: 35 to 85% RH
Protection Structure: IP66
Material: Case: Acrylonitrile butadiene styrene, Cap: Polycarbonate
Weight: Approx. 90 g
