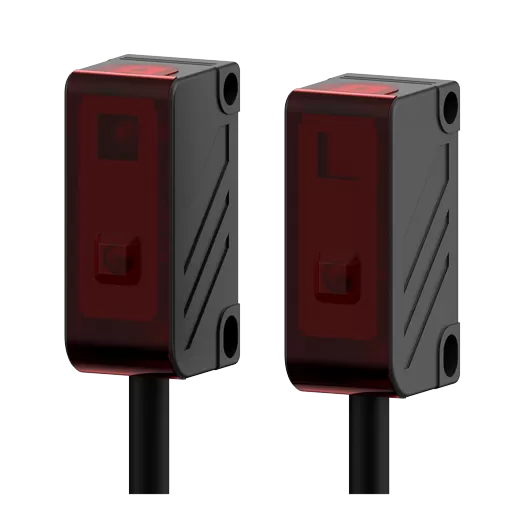

Autonics BYS500-TDT1.2 Photoelectric Sensor

Photoelectric Sensor –  Specifications

• Sensing Type: Through-beam (side sensing)

• Sensing Distance: 500 mm

• Detectable Target: Opaque objects, minimum Ø5 mm

• Response Time: ≤ 1 ms

• Light Source: Infrared LED (940 nm)

• Operation Mode: Dark ON

Electrical Specifications

• Power Supply: 12–24 VDC ±10% (Max. ripple 10% P-P)

• Current Consumption: Max. 30 mA (Emitter / Receiver)

• Output Type: NPN Open Collector

Environmental Conditions

• Ambient Light: Sunlight ≤ 11,000 lux, Incandescent ≤ 3,000 lux

• Operating Temperature: -10°C to 60°C

• Storage Temperature: -25°C to 70°C

• Humidity: 35–85% RH

Mechanical Details

• Protection Rating: IP50

• Connection: Cable type (Ø4 mm, 2 m length)

• Weight: Approx. 150 g

• Material: PC housing, SPCC bracket, SCM bolt & nut
