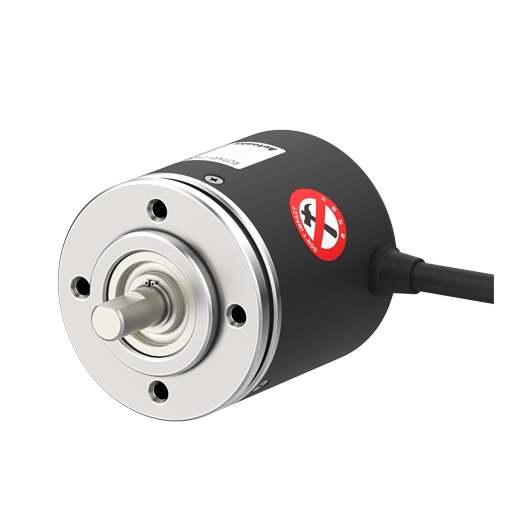

Autonics EP50S8-1024-1F-N-24-S-U Rotary Encoders

Resolution : 1024 P/R
Output code : BCD Code
Control output : NPN open collector
Max. response frequency : 35 kHz
Max. allowable revolution : 3000 rpm
Starting torque : Max. 70 gf·cm (max. 0.0069 N·m)
Power voltage : 12 ~ 24 VDC ±5% (ripple P-P : max. 5%)
Current consumption : ≤ 100 mA (no load)
Insulation resistance : ≥ 100 MΩ (500 VDC megger)
Connection : Radial cable type
Ambient temperature : -10 ~ 70°C (Storage : -25 ~ 85°C)
Ambient humidity : 35 ~ 85 %RH (Storage : 35 ~ 90 %RH)
Protection structure : IP65 (IEC standard)
Unit weight (packaged weight) : ≈398 g (≈482 g)
