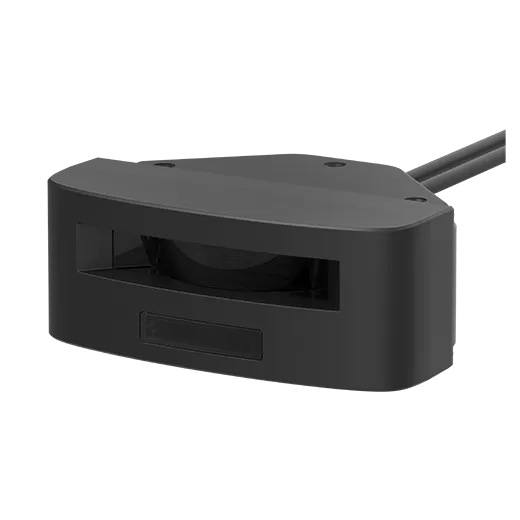

Autonics LSE2-A5R2-ET Laser Scanner

• Compact 2D 1-channel laser scanner for industrial detection and monitoring
• Infrared detection laser (Class 1) with 905 nm wavelength
• Visible installation laser (Class 3R) with 650 nm wavelength for easy alignment
• Monitoring zone: 0.3 × 0.3 m to 5.6 × 5.6 m
• Angular resolution: 0.25° with 90° aperture angle
• Scanning frequency: 25 Hz for fast detection
• Response time: ≤ 50 ms + monitoring time
• Detects objects with minimum reflectivity of 2%
• Power supply: 24 VDC
• Power consumption: < 10 W
• Input: Photocoupler input (1 channel)
• Output: PhotoMOS relay output (2 channels)
• Communication interface: Ethernet
• Protection rating: IP67 for harsh environments
• Operating temperature: -30°C to 60°C
• Weight: Approx. 0.8 kg
