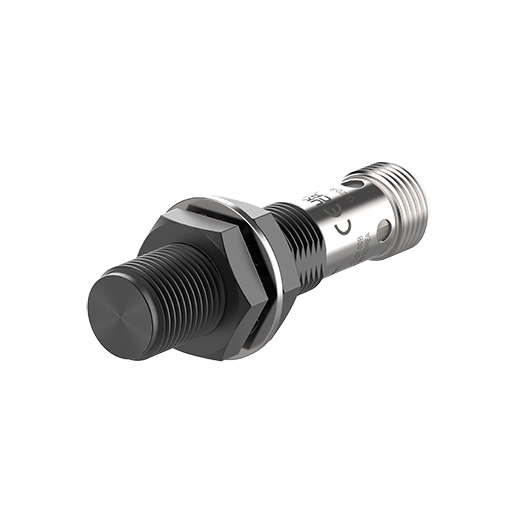

Autonics PRFDACM12-3DP-K Inductive Proximity Sensor

• Full-metal cylindrical inductive proximity sensor designed for long-distance detection
• Flush mounting type with Ø12 mm sensing side diameter
• Sensing distance: 3 mm
• Hysteresis: Max. 15% of sensing distance
• Standard sensing target: 21 × 21 × 1 mm (iron)
• Response frequency: 10 Hz
• Indicators: Stable (green), unstable (orange), abnormal detection (cross-flashing)
• Power supply: 10 – 30 VDC
• Current consumption: Max. 20 mA
• Control output: Max. 100 mA
• Residual voltage: ≤ 2.5 V
• Built-in surge protection, short-circuit protection, and reverse polarity protection
• Protection rating: IP66, IP67, IP67G, IP68 for harsh environments
• Connector type: M12 plug connector
• Material: Stainless steel housing (SUS303) with PTFE coating
• Operating temperature: -25°C to 70°C
• Weight: Approx. 15 g
