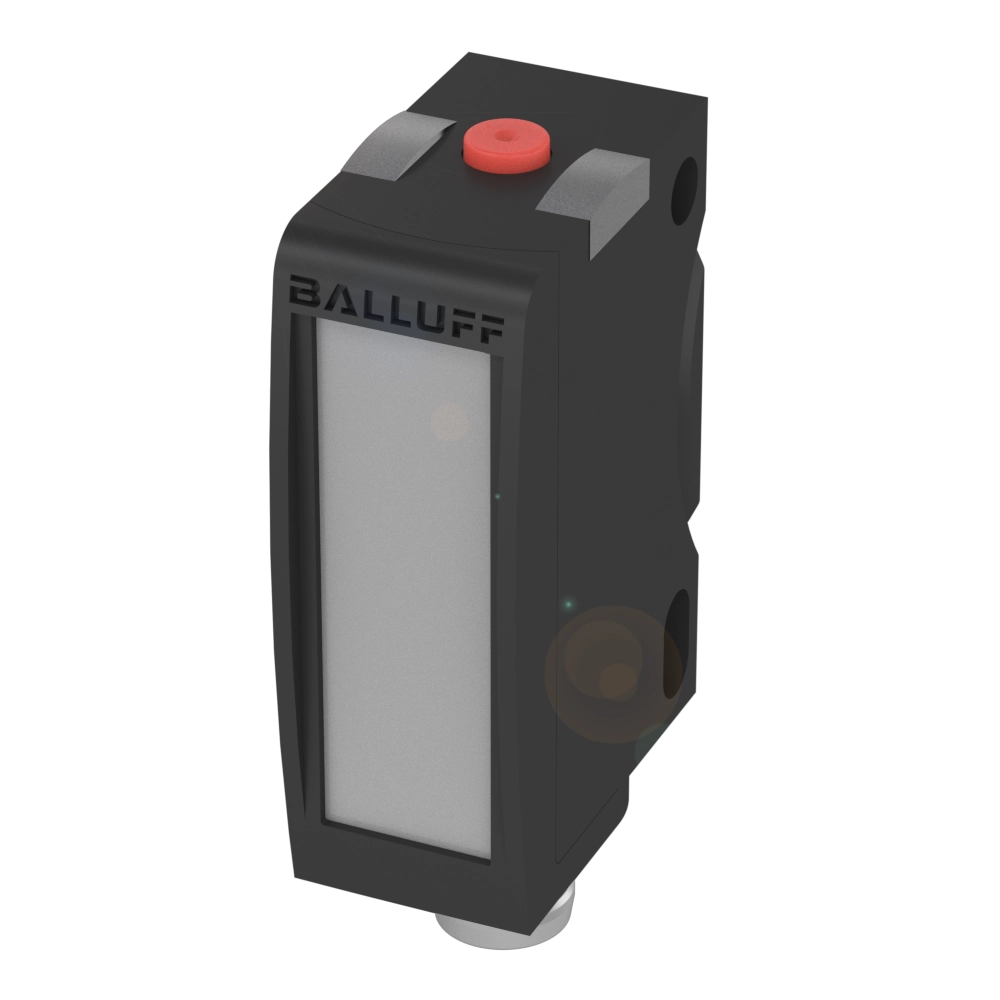

Balluff BKT0014 Contrast Sensors

Series : 6K
Dimension : 12 x 34 x 21.6 mm
Interface : IO-Link-Device 1.1.3, Push-Pull/IO-Link NO/NC
Input function : Key disable on/off, Same function as button
Principle of operation : Contrast sensor
Principle of optical operation : Diffuse sensor, focused
Light type : LED white light
Light spot size : 1 x 4 mm at 12 mm
Range : 9.5…14.5 mm
Connection : Connector, M8x1-Male, 4-pin
Housing material : ABS
Material sensing surface : PMMA
Operating voltage Ub : 10…30 VDC
Approval/Conformity : CE, UKCA, cULus, WEEE
