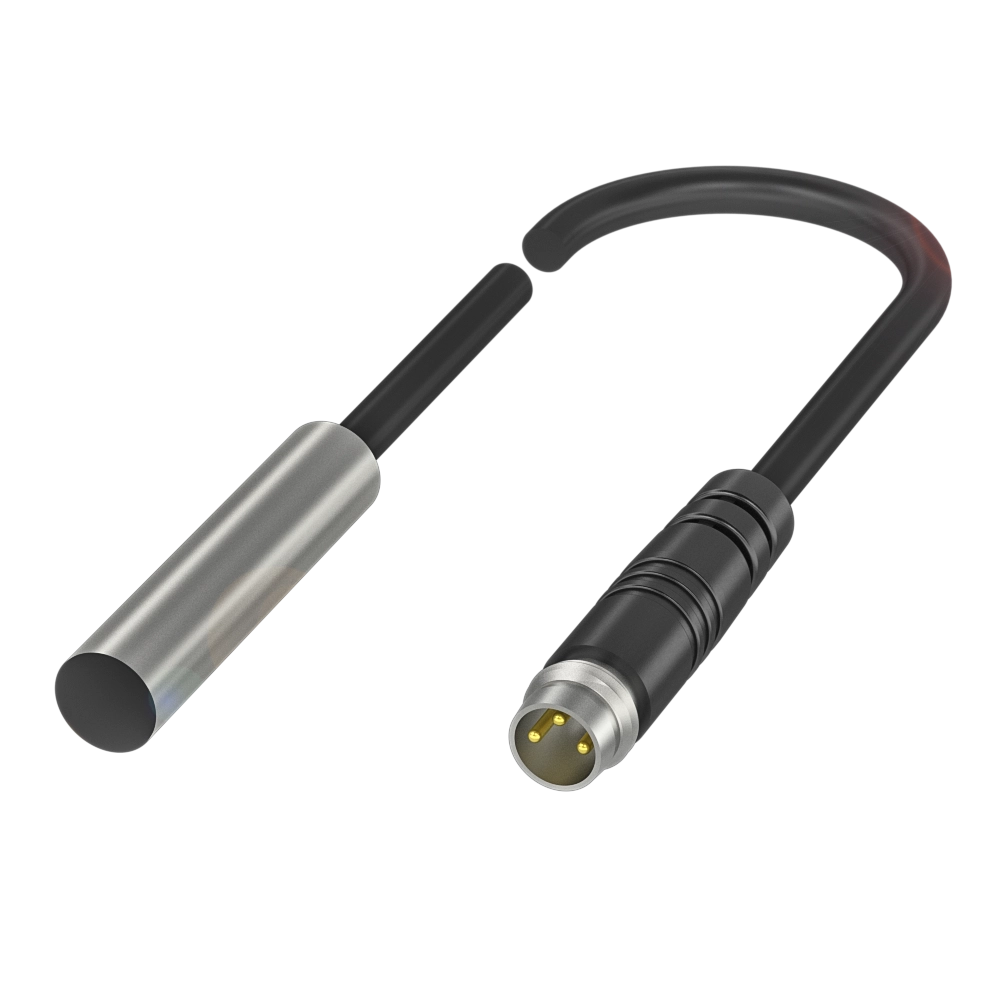

Balluff BMF000L Magnetic Field Sensor

• Cylindrical magnetic field sensor designed for reliable magnetic detection in industrial applications
• Compact cylindrical design: Ø6.5 × 30 mm
• Operating principle: Magnetic field sensing for accurate position detection
• Flexible mounting with clamp installation options
• Long switching distance: > 20 mm possible depending on magnet strength
• Connection: M8×1 male connector, 3-pin
• Cable: PUR cable, 0.3 m length
• Switching output: PNP Normally Open (NO)
• Switching frequency: Up to 10,000 Hz for fast response
• Operating voltage: 10 – 30 VDC
• Housing material: Nickel-plated brass for durability and corrosion resistance
• Protection rating: IP67 suitable for harsh industrial environments
• Operating temperature: -25°C to 85°C
• Approvals: cULus, CE, UKCA, WEEE compliant
