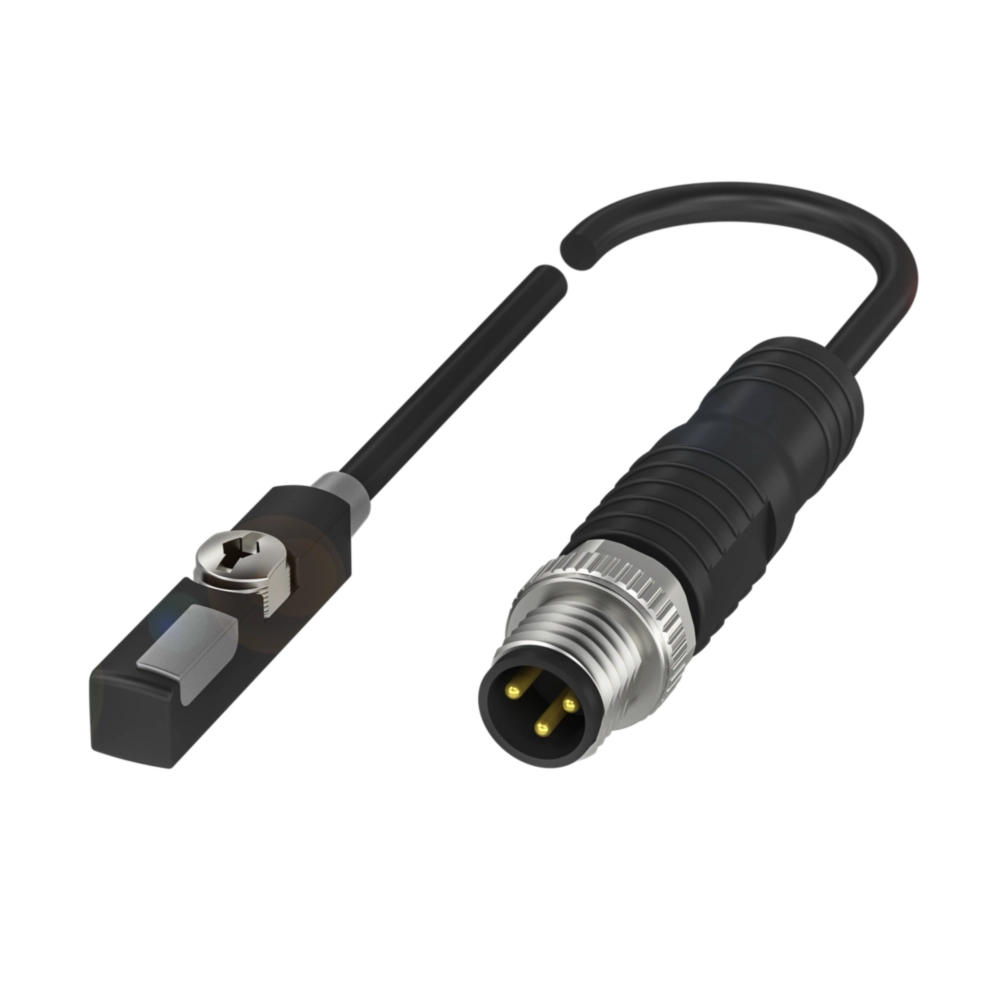

Balluff BMF00PM Magnetic Field Sensor

• Magnetic field sensor designed for pneumatic cylinders with T-slot mounting
• Compact dimensions: 23.5 × 5 × 5.5 mm
• Operating principle: Magnetic field detection for accurate piston position sensing
• Slot type: T-slot, can be installed from the top of the slot
• Connection: M8×1 male connector, 3-pin
• Cable: TPU cable, 0.3 m length
• Switching output: PNP Normally Open (NO)
• Switching frequency: Up to 3000 Hz for fast response
• Operating voltage: 10 – 30 VDC
• Housing material: PA12 durable plastic housing
• Protection rating: IP67 suitable for industrial environments
• Operating temperature: -25°C to 85°C
• Approvals: cULus, CE, UKCA, WEEE compliant
• Suitable for reliable position detection in pneumatic automation systems
