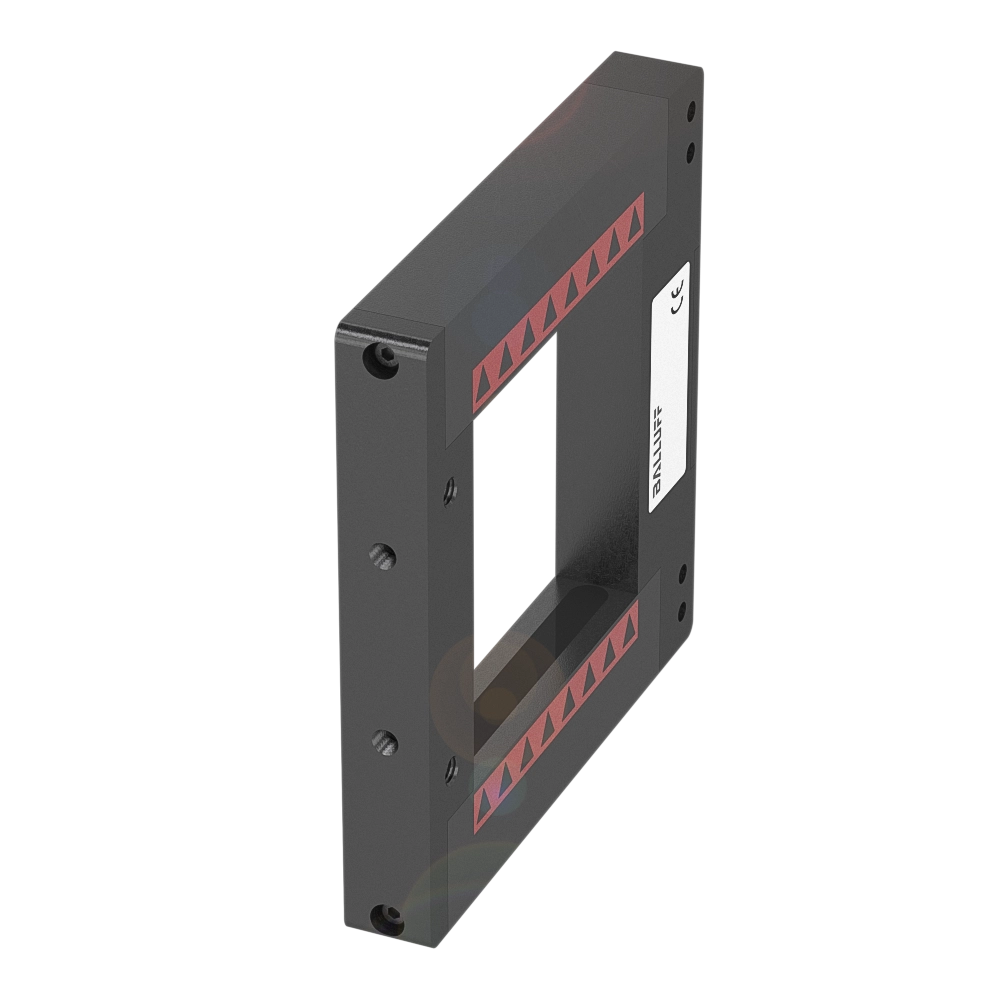

Balluff BOW001J Optical windows sensors

Series: A
Dimension: 18 x 130 x 140 mm
Active window (PL x AL): 80 × 80 mm
Interface: PNP dynamic normally open (NO)
Principle of operation: Optical window sensor
Principle of optical operation: Through-beam sensor
Beam characteristic: Divergent
Light type: Infrared
Connection: Connector, M8x1-Male, 3-pin
Housing material: Aluminium, anodized, black
Material sensing surface: PMMA
Operating voltage Ub: 10…30 VDC
Approval/Conformity: CE, UKCA, WEEE
