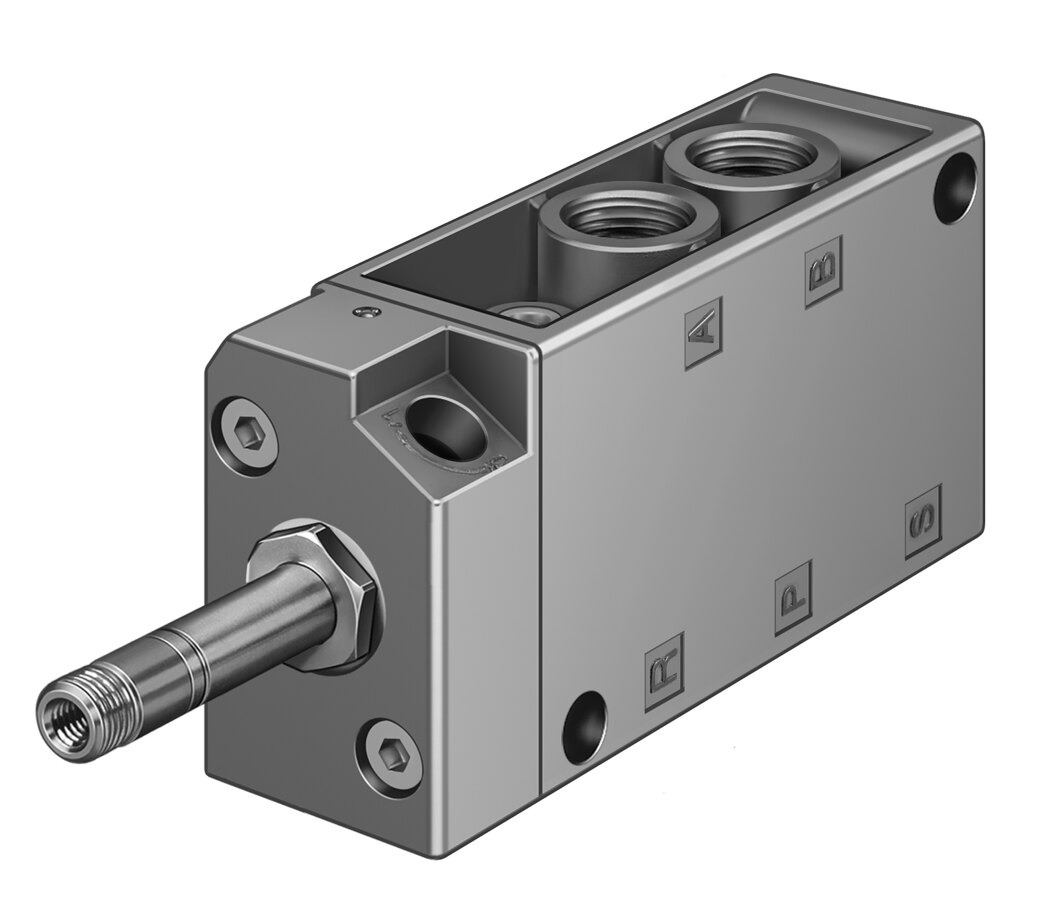

Festo MFH-5-1/4 Solenoid Valve – 5/2-Way, Single Solenoid

Festo MFH-5-1/4 is a 5/2-way, single-solenoid pneumatic valve designed for industrial automation and compressed-air control systems. It features a nominal flow rate of 1,000 l/min, G1/4 pneumatic ports, and a mechanical spring reset. Its robust die-cast aluminium housing, NBR seals, and IP65 degree of protection support reliable operation in industrial environments. The solenoid coil must be ordered separately.

Technical Specifications

• Brand: Festo

• Model: MFH-5-1/4

• Product Type: Pneumatic Solenoid Valve

• Valve Function: 5/2-way, single solenoid

• Type of Actuation: Electrical

• Construction Width: 30.5 mm

• Nominal Flow Rate (ISO 8778): 1,000 l/min

• Standard Nominal Flow Rate (DIN 1343): 1,000 l/min

• Pneumatic Working Port: G1/4

• Operating Voltage: Via solenoid coil, ordered separately

• Operating Pressure: 2.2–8 bar (0.22–0.8 MPa)

• Design: Poppet seat

• Reset Type: Mechanical spring

• Approval: cULus Recognised (Oil)

• Degree of Protection: IP65

• Nominal Size: 7 mm

• Grid Dimension: 32 mm

• Exhaust-Air Function: Can be throttled

• Sealing Principle: Soft

• Mounting Position: Any

• Manual Override: Detenting

• Type of Piloting: Piloted

• Flow Direction: Non-reversible

• Symbol: 00991035

• Lap: Underlap

• b Value: 0.19

• C Value: 4.49 l/s·bar

• Switching Time (Off): 29 ms

• Switching Time (On): 9 ms

• Maximum Positive Test Pulse (0 Signal): 2,200 µs

• Maximum Negative Test Pulse (1 Signal): 3,700 µs

• Electrical Connection: Via F coil, ordered separately

• Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]

• Lubricated Operation: Possible; if started, it must remain lubricated

• Corrosion Resistance Class (CRC): 1 – Low corrosion stress

• LABS (PWIS) Conformity: VDMA24364-B1/B2-L

• Storage Temperature: -20°C to +60°C

• Media Temperature: -10°C to +60°C

• Ambient Temperature: -5°C to +40°C

• Product Weight: 290 g
