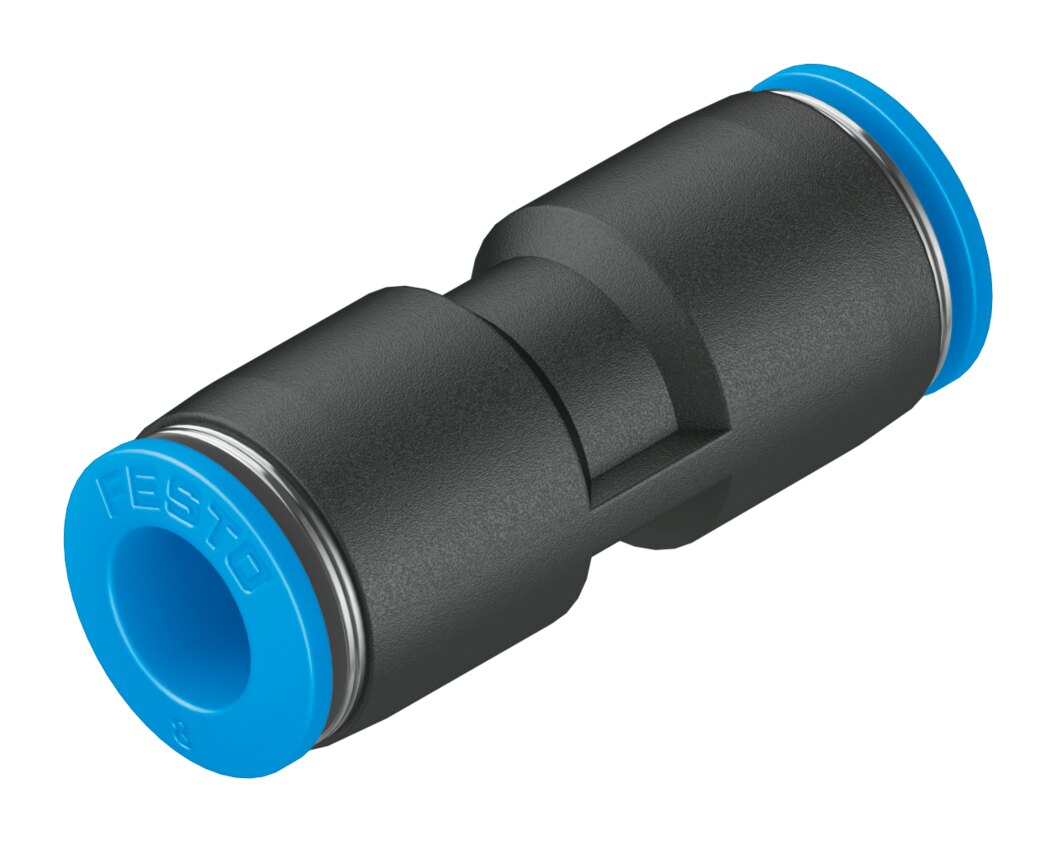

Festo QS-8 Push-in Connector

Festo QS-8 Push-in Connector is a straight pneumatic fitting designed to connect two tubes with an 8 mm outer diameter. It features a push-pull connection principle and is suitable for compressed-air systems and compatible ice-free liquid water applications.

Technical Specifications

• Brand: Festo

• Model: QS-8

• Part Number: 153033

• Product Type: Push-in Connector

• Design: Straight

• Connection Principle: Push-pull

• Pneumatic Connection, Port 1: 8 mm tubing outer diameter

• Pneumatic Connection, Port 2: 8 mm tubing outer diameter

• Nominal Size: 7 mm

• Tubing Insertion Depth: 18.1 mm

• Mounting Position: Any

• Operating Pressure: -0.095 to 0.6 MPa (-0.95 to 6 bar)

• Temperature-Dependent Operating Pressure: -0.095 to 1.4 MPa (-0.95 to 14 bar)

• Water Pressure Limit: Maximum 0.6 MPa at 50°C

• Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-] and ice-free liquid water

• Lubricated Operation: Possible

• Ambient Temperature: -10°C to +80°C

• Corrosion Resistance Class: CRC 1 – Low corrosion stress

• LABS (PWIS) Conformity: VDMA 24364-B1/B2-L

• Cleanroom Suitability: Class 4 according to ISO 14644-1

• Housing Material: PBT

• Release Ring Material: POM

• Tubing Seal Material: NBR

• Release Ring Colour: Blue
