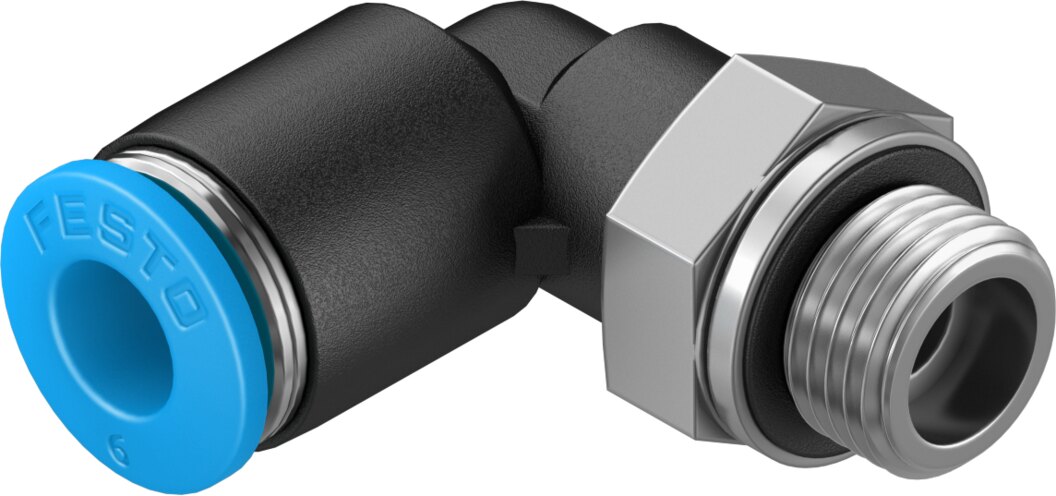

Festo QSL-G1/8-6 Push-in L-Fitting

Festo QSL-G1/8-6 Push-in L-Fitting is a pneumatic connector with an L-shaped design, featuring a G1/8 male thread and a push-in connection for 6 mm tubing. It is suitable for compressed-air systems and compatible ice-free liquid water applications under specified operating conditions.

Technical Specifications

• Brand: Festo

• Model: QSL-G1/8-6

• Part Number: 186117

• Product Type: Push-in L-Fitting

• Design: L-shape

• Connection Principle: Push-pull

• Pneumatic Connection, Port 1: G1/8 male thread

• Pneumatic Connection, Port 2: 6 mm tubing outer diameter

• Nominal Size: 4.2 mm

• Tubing Insertion Depth: 17 mm

• Thread Seal Type: Sealing ring

• Mounting Position: Any

• Mounting Type: External hex, SW13

• Nominal Tightening Torque: 5.4 Nm

• Torque Tolerance: ±20%

• Operating Pressure: -0.095 to 0.6 MPa (-0.95 to 6 bar)

• Temperature-Dependent Operating Pressure: -0.095 to 1.4 MPa (-0.95 to 14 bar)

• Water Pressure Limit: Maximum 0.6 MPa at 50°C

• Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-] and ice-free liquid water

• Lubricated Operation: Possible

• Water Connection Note: G-thread requires an additional OL-type sealing ring for water applications

• Ambient Temperature: -10°C to +80°C

• Corrosion Resistance Class: CRC 1 – Low corrosion stress

• Cleanroom Suitability: Class 4 according to ISO 14644-1

• LABS (PWIS) Conformity: VDMA 24364-B1/B2-L

• Screwed Plug Material: Nickel-plated brass

• Housing Material: PBT

• Release Ring Material: POM

• Tubing Seal Material: NBR

• Release Ring Colour: Blue
