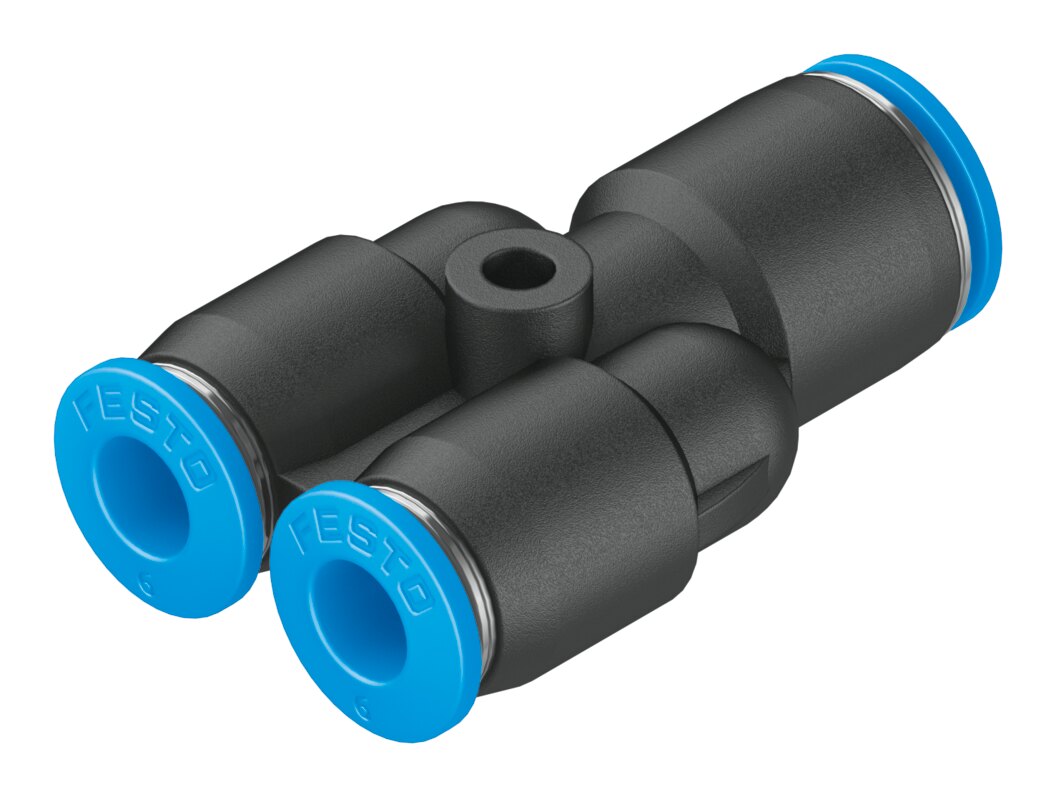

Festo QSY-8-6 Push-in Y-Connector

Festo QSY-8-6 Push-in Y-Connector is a pneumatic fitting designed to connect tubing in a Y-shaped configuration. It supports compressed air and water applications, with push-pull tube connections for convenient installation in industrial pneumatic systems.

Technical Specifications

• Brand: Festo

• Model: QSY-8-6

• Part Number: 153154

• Product Type: Push-in Y-Connector

• Design: Y-shape

• Connection Principle: Push-pull

• Nominal Size: 3.2 mm

• Tubing Connection, Port 1: 8 mm outer diameter

• Tubing Connection, Port 2: 6 mm outer diameter

• Tubing Insertion Depth: 18.1 mm for Ø8 mm tubing; 17 mm for Ø6 mm tubing

• Number of Supply Lines: 1

• Number of Outputs: 2

• Operating Pressure: -0.095 to 0.6 MPa (-0.95 to 6 bar)

• Temperature-Dependent Operating Pressure: -0.095 to 1.4 MPa (-0.95 to 14 bar)

• Water Pressure Limit: Maximum 0.6 MPa at 50°C

• Operating Medium: Compressed air to ISO 8573-1:2010 [7:-:-] and ice-free liquid water

• Lubricated Operation: Possible

• Mounting Position: Any

• Ambient Temperature: -10°C to +80°C

• Corrosion Resistance Class: CRC 1 – Low corrosion stress

• Cleanroom Suitability: Class 4 according to ISO 14644-1

• LABS (PWIS) Conformity: VDMA 24364-B1/B2-L

• Housing Material: PBT

• Release Ring Material: POM

• Tubing Seal Material: NBR

• Release Ring Colour: Blue

• RoHS Compliance: Yes

• Product Weight: 13 g
