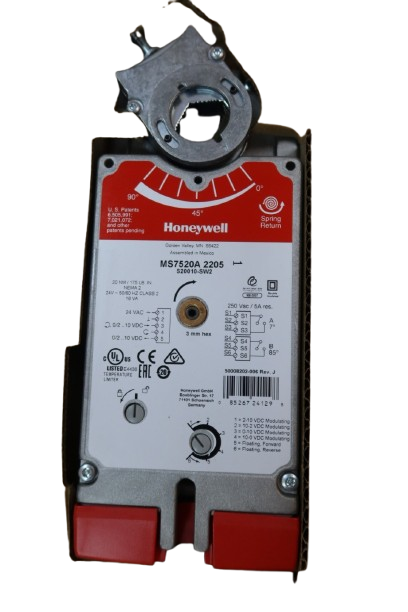

HONEYWELL MS7520A2205 20NM 24VAC
Description
- Brushless DC sub motor with electronic stall protection for floating/modulating models.
- MODULATING SPRING RETURN DIRECT COUPLED ACTUATOR (US MADE)
- Floating/Modulating models can provide two position (SPST) control.
- Brush DC submotor with electronic stall protection for two-position models.
- Self-centering shaft adapter (shaft coupling) for wide range of shaft sizes.
- Access cover to facilitate connectivity.
- Metal housing with built-in mechanical end limits.
- Spring return direction field-selectable.
- Shaft position indicator and scale.
- Manual winding capability with locking function.
- UL (cUL) listed.
- All Models are plenum-rated per UL2043.
- Models available with 3-foot, 18 AWG color-coded cable.
- Sylk-enabled models available.
