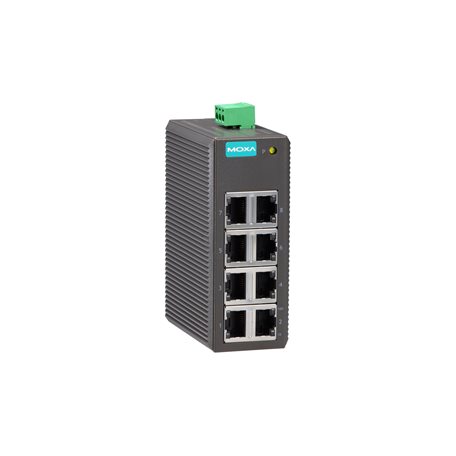

Moxa EDS-208 Series Ethernet Switch | 8-Port Industrial Switch

The Moxa EDS-208 Series is an entry-level unmanaged industrial Ethernet switch designed for reliable network connectivity in industrial environments. It supports 10/100 Mbps Ethernet, automatic MDI/MDI-X detection, and DIN-rail mounting. Models are available with eight RJ45 ports or seven RJ45 ports plus one multimode fibre port with an SC or ST connector.

Technical Specifications

• Brand: Moxa

• Series: EDS-208

• Product Type: Unmanaged Industrial Ethernet Switch

• Ethernet Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

• Ethernet Speed: 10/100 Mbps

• RJ45 Ports: 8 on EDS-208; 7 on EDS-208-M-SC and EDS-208-M-ST

• Fibre Port: 1 × 100BaseFX multimode SC or ST, depending on model

• Switching Method: Store-and-forward

• MAC Address Table: 2K entries

• Packet Buffer: 768 kbits

• Input Voltage: 12/24/48 VDC or 24 VAC (AC input availability depends on hardware version)

• Operating Voltage: 9.6–60 VDC or 18–30 VAC

• Power Connector: Removable 3-contact terminal block

• Protection Features: Overload current and reverse polarity protection

• Housing Material: Plastic
