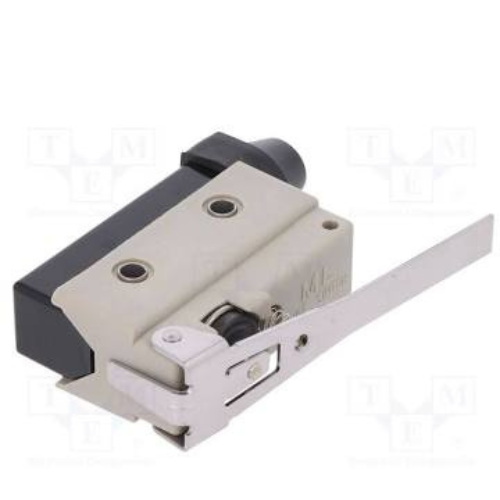

Panasonic AZ7120 – Limit Switch, Angled Lever

The Panasonic AZ7120 is a compact limit switch with an angled lever actuator and an SPDT contact, rated 10A at 250V AC (0.4A at 115V DC). It has screw terminals, IP64 protection, a metal and plastic body, and two mounting holes on a 25 mm pitch. Operating from -20°C to 60°C, it suits position and end-stop detection on machine tools, conveyors, packaging machines, and general industrial equipment.

Technical Specifications

• Brand: Panasonic
• Model: AZ7120
• Type: Limit Switch
• Actuator: Angled lever
• Contact Configuration: SPDT
• Max. Contact Current: 10A
• AC Contact Rating: 10A at 250V AC (resistive load)
• DC Contact Rating: 0.4A at 115V DC (resistive load)
• Max. Switched Voltage: 250V AC / 125V DC
• Connection: Screw terminals
• IP Rating: IP64
• Operating Temperature: -20°C to 60°C
• Body Material: Metal, plastic
• Body Dimensions: 21.4 x 51 x 54 mm
• Mounting: 2 holes, 25 mm pitch
