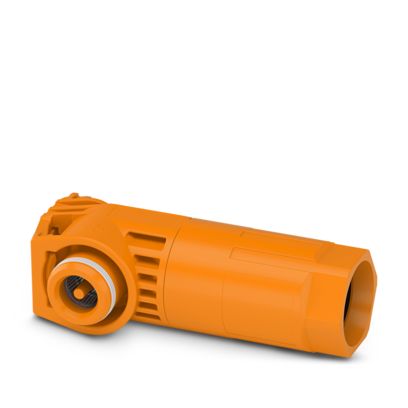

Phoenix Contact ES-BPC-C 95-120 OG Connector
Phoenix Contact ES-BPC-C 95-120 OG Connector
Description
- Phoenix Contact ES-BPC-C 95-120 OG Connector
- Type: High-current connector for energy storage (BPC Series)
- Positions: 1
- Color: Orange
- Rated voltage: Up to 1500 V DC
- Rated current: Up to 350 A
- Connection method: Crimp
- Conductor cross-section: 95 mm² to 120 mm²
- Cable diameter: 14.1 mm to 22.5 mm
- Protection rating: IP65 (mated), IP20 (unmated)
- Housing material: Polyamide with silicon seal
- Contact material: Copper / copper alloy (Ni/Ag, Sn plated)
- Operating temperature: -40°C to +80°C
- Flame resistant (UL94 V0)
