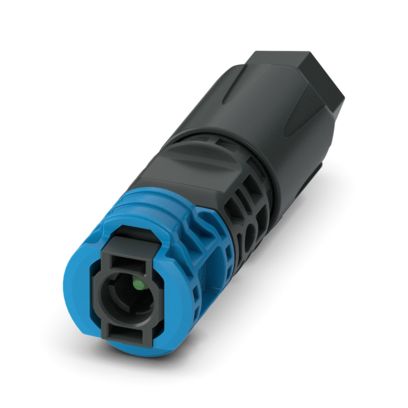

Phoenix Contact ES-C4M-S-CO2 6-16 Connector
Phoenix Contact ES-C4M-S-CO2 6-16 Connector
Description
- Phoenix Contact ES-C4M-S-CO2 6-16 Connector
- Type: Connector for energy storage applications (BPP Series)
- Positions: 1
- Color: Blue / Black
- Rated voltage: Up to 1500 V DC
- Rated current: Up to 38 A (6 mm² conductor)
- Connection method: Spring-cage connection
- Conductor cross-section: 6 mm² to 16 mm²
- Cable diameter: 5.5 mm to 10 mm
- Housing material: PPE with EPDM seal
- Contact material: Copper
- Protection class: II
- Rated surge voltage: 16 kV
- Contact resistance: ≤ 0.45 mΩ
- Flame resistant & halogen-free (UL94 V0)
