Home / Products / Phoenix Contact ES-FT-C4M-CO1 Front Mount Connector

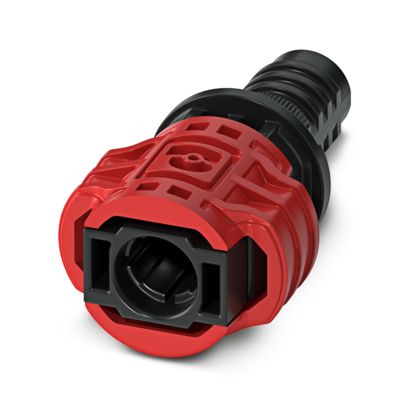

Phoenix Contact ES-FT-C4M-CO1 Front Mount Connector

Phoenix Contact ES-FT-C4M-CO1 Front Mount Connector

Description

Phoenix Contact ES-FT-C4M-CO1 Device Connector (Front Mounting)
Type: Front-mount device connector for energy storage (BPP Series)
Positions: 1
Color: Red / Black
Rated voltage: Up to 1500 V DC
Rated current: 26 A (up to 38 A depending on conductor size)
Connection method: Crimp
Conductor cross-section: 2.5 mm² to 6 mm²
Cable diameter: Up to 5.8 mm
Protection rating: IP66 / IP68 (mated), IP20 (unmated)
Rated surge voltage: 16 kV
Housing material: PPE with EPDM seal
Contact resistance: < 0.45 mΩ
Operating temperature: -40°C to +85°C
Halogen-free & flame resistant (UL94 V0)
