Phoenix Contact HC-STA-B06-HLFS-1STM20-EL-AL

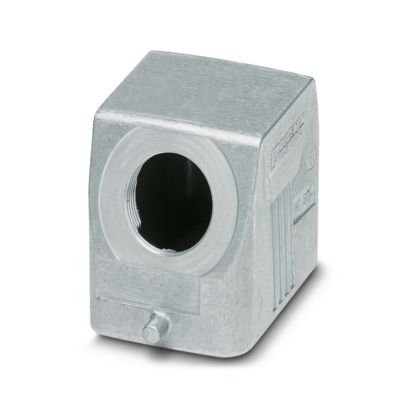

Phoenix Contact HC-STA-B06-HLFS-1STM20-EL-AL
Description
- Type: Sleeve Housing with locking latch
- Size/Type: B6
- Locking: Single locking latch (Pin type)
- Cable Entry:
- 1 × M20 (lateral entry)
- Cable gland not included
- Material: Die-cast aluminum (salt water resistant)
- Surface: Uncoated
- Protection Rating:
- IP66 / IP67
- NEMA 4, 4X, 12
- Impact Resistance: IK08
- Dimensions:
- Width: 44 mm
- Height: 52 mm
- Length: 60 mm
- Temperature Range: -40°C to +125°C
- Compatibility:
- Suitable for HC-B6, BB10, DD24, M inserts
- Important Notes:
- Suitable for harsh and outdoor environments
- Optional powder-coated versions available
