Phoenix Contact HC-STA-D07-HHFS-1STM20-EL-AL
Phoenix Contact HC-STA-D07-HHFS-1STM20-EL-AL
Description

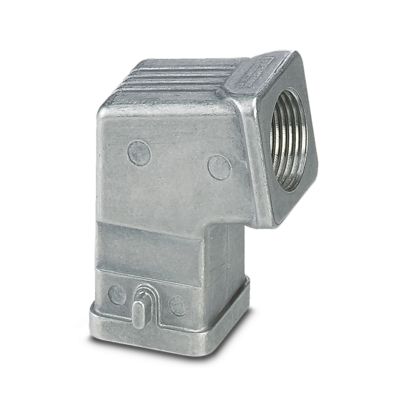

- Type: Sleeve Housing with locking latch
- Size/Type: D7
- Locking: Single locking latch (Pin type)
- Cable Entry:
- 1 × M20 (lateral entry)
- Cable gland not included
- Material: Die-cast aluminum (salt water resistant)
- Surface: Uncoated
- Protection Rating:
- IP66 / IP67
- NEMA 4, 4X
- Impact Resistance: IK06
- Dimensions:
- Width: 40.7 mm
- Height: 52.8 mm
- Length: 26.9 mm
- Temperature Range: -40°C to +125°C
- Compatibility:
- Suitable for HC-A03, A04, D07, D08, Q series inserts
