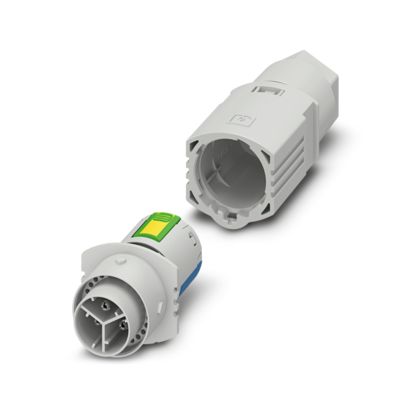

Phoenix Contact – IPD P 3P2,5 M GY Connector

• 3-position connector (2+PE, pin)
• Rated voltage: 500 V AC/DC
• Rated current: 20 A
• Supports 0.5 mm² to 2.5 mm² wires
• Push-lock connection for quick and secure wiring
• Coding: P for safe connection
• Cable size: 6–13 mm diameter
• High surge voltage: 6 kV
• Strong PA housing with NBR seal
• IP66 / IP68 / IP69K protection
• UV and impact resistant (IK07)
• Light gray housing (RAL 7035)
• Works in -30°C to +100°C temperature
• Durable with up to 100 mating cycles
