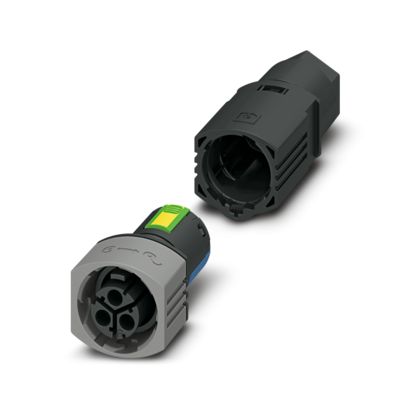

Phoenix Contact – IPD PL 3P2,5 F BK Connector

• Installation connector (socket) from IPD series
• 2+PE positions (3 total) with coding P
• Rated voltage: 500 V AC/DC
• Rated current: 20 A
• Supports 0.5 mm² to 2.5 mm² conductors
• Push-lock connection for quick and secure wiring
• Suitable for cable diameter 6 mm to 13 mm
• High surge voltage: 6 kV
• Durable PA housing with NBR seal
• IP66 / IP68 / IP69K protection
• UV resistant and impact resistant (IK07)
• Wide temperature range: -30°C to +100°C
• Reliable with up to 100 mating cycles
