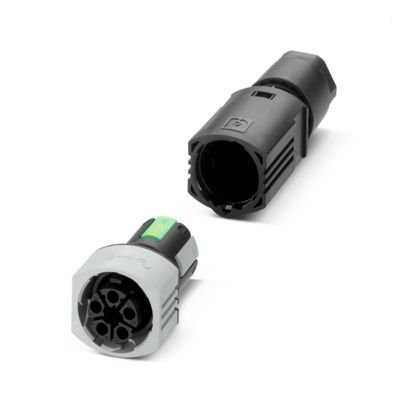

Phoenix Contact – IPD PL 5P2,5 F BK Connector

• 5-position connector (4+PE, socket)
• Rated voltage: 600 V AC/DC
• Rated current: 17.5 A
• Supports 0.5 mm² to 2.5 mm² wires
• Push-lock connection for fast and secure wiring
• Coding: P for safe connection
• Cable size: 7–16 mm diameter
• High surge voltage: 6 kV
• Strong PA housing with NBR seal
• IP66 / IP68 / IP69K protection
• UV and impact resistant (IK07)
• Black housing (RAL 9005)
• Works in -30°C to +100°C temperature
• Durable with up to 100 mating cycles
