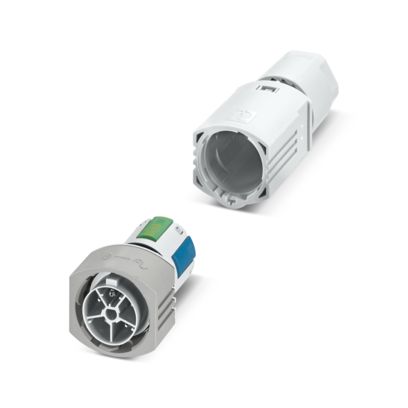

Phoenix Contact – IPD PL 5P2,5 M GY Connector

• Type: Installation Connector
• Application: Industrial power and signal connection
• Product Family: IPD
• Positions: 5 (4+PE)
• Connection Type: Push-lock connection
• Coding: P
• Rated Voltage: 600 V AC/DC
• Rated Current: 17.5 A
• Overvoltage Category: III
• Pollution Degree: 3
• Rated Surge Voltage: 6 kV
• Conductor Size: 0.5 – 2.5 mm² (AWG 20–14)
• External Cable Diameter: 7–11 mm / 11–16 mm
• Dimensions: 32.5 mm (W) × 32.1 mm (H) × 91.7 mm (L)
• Material: PA housing, Cu contacts, NBR seal
• Contact Surface: Ni/Ag/Sn
• Housing Color: Light Gray (RAL 7035)
• Flammability Rating: UL 94 V0
• Protection Rating: IP66 / IP68 (2 m / 24 h) / IP69K
• Impact Resistance: IK07
• Insertion/Withdrawal Cycles: 50 (IP66/IP68/IP69K), 100 (IP66)
• Operating Temperature: -30°C to +100°C
• Storage Temperature: -30°C to +100°C
• UV Resistance: Yes
