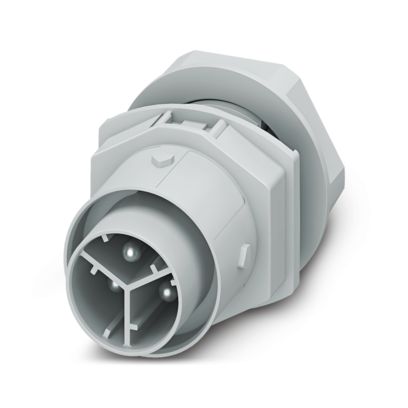

Phoenix Contact – IPD W 3P2,5 M M20

• Panel feed-through connector from IPD series
• 2+PE positions (3 total) with coding P
• Rated voltage: 500 V AC/DC
• Rated current: 20 A
• Supports 0.5 mm² to 2.5 mm² conductors
• Push-in connection for fast and secure wiring
• M20 mounting type (hole size 20 mm)
• High surge voltage: 6 kV
• Durable PA housing with EPDM seal
• IP66 / IP68 / IP69K protection
• UV resistant and impact resistant (IK07)
• Light gray housing (RAL 7035)
• Wide temperature range: -30°C to +100°C
• Reliable with up to 100 mating cycles
