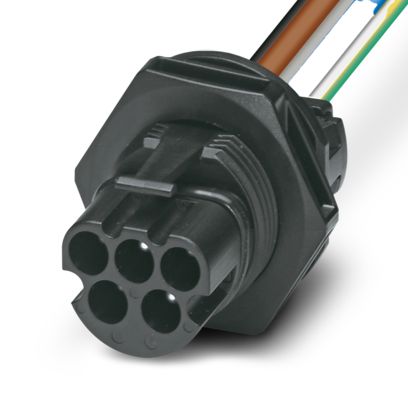

Phoenix Contact – PRC 5-FT25-MC4-150

• Type: Panel Feed-Through (Rear Mounting)
• Application: Industrial power connection with cable
• Product Family: PRC 35
• Positions: 5 (4+PE)
• Connection Type: Crimp connection
• Coding: AD
• Rated Voltage: 690 V AC
• Rated Current: Up to 32 A
• Protection Class: II
• Pollution Degree: 2
• Rated Surge Voltage: 8 kV
• Cable Length: 150 mm
• Cable Cross Section: 4 mm²
• Wire Colors: Blue, Black, Gray, Brown, Green/Yellow
• Dimensions: 34.5 mm (W) × 38.4 mm (H) × 179.5 mm (L)
• Hole Diameter: 25.5 mm
• Wrench Size: 32 mm
• Mounting Type: Rear mounting (M25 x 1.5)
• Material: PPE housing, CuZn contacts, EPDM seal
• Contact Surface: Silver (Ag)
• Housing Color: Black (RAL 9005)
• Flammability Rating: UL 94 V0
• Insertion/Withdrawal Cycles: 100
• Insertion Force: 40 N ±10 N
• Pull-out Force: 175 N ±50 N
• Protection Rating: IP66 / IP68 (2 m / 24 h) / IP69K
• Operating Temperature: -40°C to +105°C
• Storage Temperature: -40°C to +70°C
• Assembly Temperature: 5°C to +85°C
