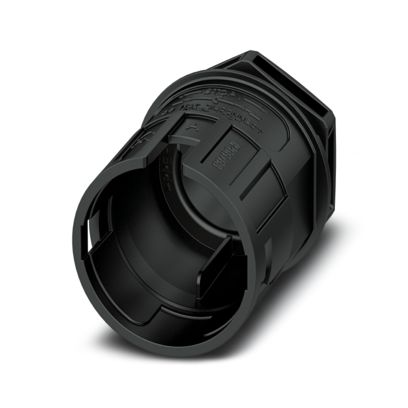

Phoenix Contact – PRC FT25-0-HSG Device Connector Housing

• Type: Device Connector (Front Mounting / Panel Feed-through)
• Application: Industrial power connection housing (without contact insert)
• Product Family: PRC 35
• Connector Type: Empty housing (contact inserts to be ordered separately)
• Rated Voltage: 690 V AC
• Protection Class: II
• Pollution Degree: 2
• Rated Surge Voltage: 6 kV
• Material: PPE housing, silicon seal
• Housing Color: Black (RAL 9005)
• Flammability Rating: UL 94 V0
• Dimensions: 37.6 mm (W) × 37.6 mm (H) × 51.6 mm (L)
• Degree of Protection: IP66 / IP68 (2 m / 24 h) / IP69K
• Impact Resistance: IK08
• Operating Temperature: -40°C to +105°C
• Storage Temperature: -40°C to +70°C
• Assembly Temperature: -5°C to +85°C
