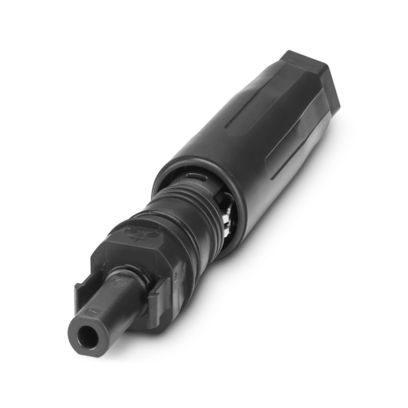

Phoenix Contact PV-C4F-S 2,5-6 (+)

Type: Photovoltaic Connector (Female)
• Application: Electrical connection for photovoltaic (PV) systems
• Series: SUNCLIX

• Number of Positions: 1
• Connection Type: Spring-cage
• Conductor Size: 2.5 mm² to 6 mm² (AWG 14–10)
• Cable Diameter: 5 mm to 8 mm
• Stripping Length: 15 mm

• Rated Voltage: 1000 V DC / 1500 V DC
• Rated Current: 20 A (2.5 mm²), 30 A (4 mm²), 35 A (6 mm²)
• Contact Resistance: ≤ 0.45 mΩ

• Material: Copper (Cu) contact with silver (Ag) plating
• Housing Material: PPE
• Seal Material: EPDM
• Color: Black

• Dimensions: 20 mm (W) × 20 mm (H) × 82 mm (L)
• Mechanical Life: Up to 100 insertion cycles

• Degree of Protection: IP66/IP68 (plugged in), IP20 (unplugged)
• Temperature Range: -40°C to +85°C
