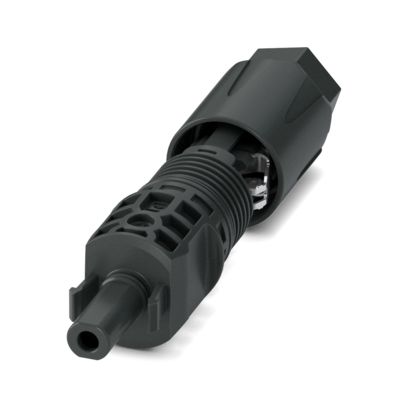

Phoenix Contact PV-C4F-S 6-16 (+)

• Type: Photovoltaic Connector (Female)
• Application: Solar / PV system DC connection
• Positions: 1
• Connection Type: Spring-cage connection
• Cable Entry: 5.5 – 10 mm cable diameter
• Conductor Size: 6 – 16 mm² (AWG 10–6)
• Voltage: 1500 V DC
• Current: Up to 60 A
• Protection: IP66 / IP68 (when mated)
• Protection Class: II
• Status Indicator: No
• Material: PPE housing, Cu contacts (Ni/Ag plated), EPDM seal
• Contact Resistance: ≤ 0.45 mΩ
• Insulation Resistance: High insulation performance (Class II)
• Dimensions: 23.7 mm (W) × 23.7 mm (H) × 83.4 mm (L)
• Temperature Range: -40°C to +85°C
