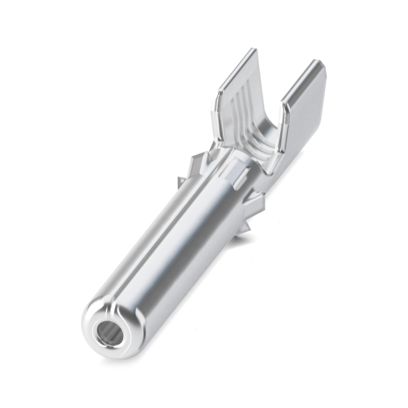

Phoenix Contact PV-FT-C3M-C-6-VPE50

• Type: Crimp Contact (Pin)
• Application: Electrical connection for photovoltaic (PV) connectors
• Series: SUNCLIX
• Contact Type: Pin (rolled)
• Connection Type: Crimp connection
• Conductor Size: 6 mm² (AWG 10)
• Stripping Length: 9 mm ±1 mm
• Current: 40 A
• Contact Resistance: < 0.3 mΩ
• Material: Copper (Cu) contact with silver (Ag) plating
• Color: Silver
• Dimensions: 5.5 mm (W) × 7.8 mm (H) × 27.6 mm (L)
• Mechanical Life: Up to 100 insertion cycles
• Temperature Range: -40°C to +85°C
