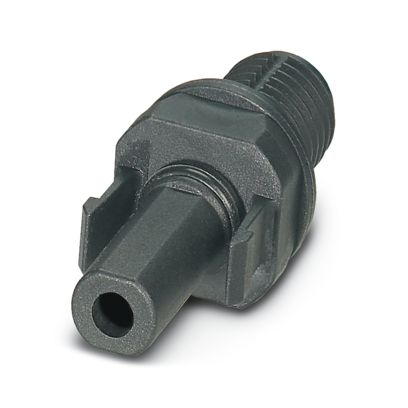

Phoenix Contact PV-FT-C4F-HSG

• Type: Device connector front mounting
• Application: Device connector front mounting for photovoltaic (PV) systems
• Series: SUNCLIX

• Number of positions: 1
• Connection method: Crimp
• Conductor Size: 2.5 mm² to 6 mm²

• Rated voltage: 1500 V DC
• Rated current: 38 A

• Tightening torque: 1.8 Nm … 2.2 Nm

• Dimensions: 21 mm (W) × 21 mm (H) × 49.1 mm (L)
• Hole diameter: 12.1 mm

• Rated surge voltage: 16 kV

• Current rating: 38 A (6 mm²), 32 A (4 mm²), 26 A (2.5 mm²)

• Contact resistance: < 0.45 mΩ

• Mechanical life: Up to 100 insertion cycles

• Material: PPE housing with EPDM seal and Silopren O-ring
• Color: Black

• Protection: IP66/IP68 (plugged in), IP20 (not plugged in)

• Temperature range: -40°C to +85°C
