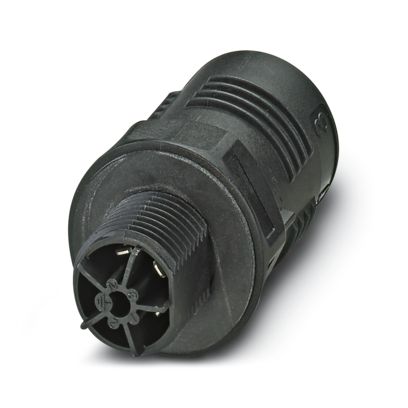

Phoenix Contact – QPD W 4PE2,5 M25 FC

• Type: Panel Feed-Through
• Application: Industrial panel and power connection
• Product Family: QPD
• Positions: 5 (4+PE)
• Connection Type: Spade connection (DIN 46247-2)
• Coding: Coded
• Rated Voltage: 690 V AC/DC
• Rated Current: 20 A
• Overvoltage Category: III
• Pollution Degree: 3
• Conductor Size: 1 – 2.5 mm² (AWG 16–14)
• Connection Capacity: Max. 10 connections per same cross-section
• Dimensions: 34.6 mm (W) × 34.6 mm (H) × 53 mm (L)
• Diameter: 34.6 mm
• Wrench Size: 30 mm
• Mounting Type: Front mounting M25
• Slip-on Connection Size: 4.8 × 0.8 mm
• Material: PA housing, Cu contacts, silver-plated surface
• Housing Color: Black (RAL 9005)
• Flammability Rating: UL 94 V0
• Protection Rating: IP66 / IP68 (2 m / 24 h) / IP69K
• Impact Resistance: IK07
• Operating Temperature: -40°C to +100°C
• Storage Temperature: -40°C to +80°C
