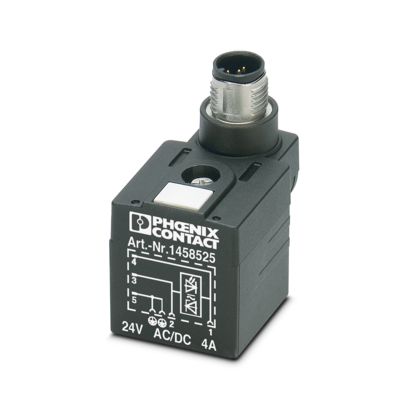

Phoenix Contact SAC-3P-MS/A-1L-Z SCO
Description
- Type: Valve Connector Adapter (M12 to Valve Connector A)
- Application: Interface between M12 connector and valve connector
- Positions: 3
- Coding: A-coded
- Connection Type: M12 plug (SPEEDCON) to Valve Connector A
- Voltage: 24 V AC/DC
- Current: 4 A
- Protection: IP65 / IP67
- Status Indicator: LED (Yellow)
- Protection Circuit: Z diode
- Material: TPU housing, CuSn contacts (Ni/Au plated), PA 6.6 contact carrier
- Insulation Resistance: ≥ 100 MΩ
- Dimensions: 28 mm (W) × 42.4 mm (H) × 41 mm (L)
- Temperature Range: -25°C to +85°C
