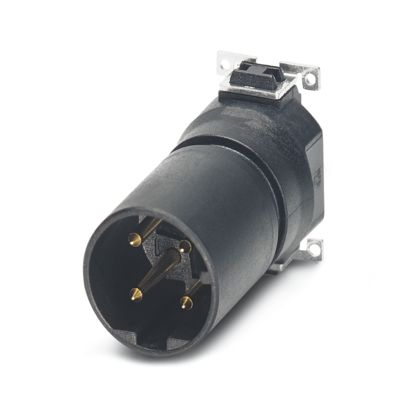

Phoenix Contact – SACC-CI-M12MSD-4P SMD R32 M12

• M12 D-coded contact carrier (pin type)
• 4-position design for signal applications
• SMD reflow mounting for PCB use
• Straight connector design
• Unshielded, without seal
• High reliability with gold-plated contacts (Au)
• Nominal voltage: 250 V, current: 4 A
• Low contact resistance ≤ 3 mΩ
• IP67 protection (when properly connected)
• Wide temperature range: -55°C to +105°C
• Durable PA insulating body (UL94 V0 rated)
• High durability: > 100 insertion cycles
• RoHS II compliant (lead-free)
