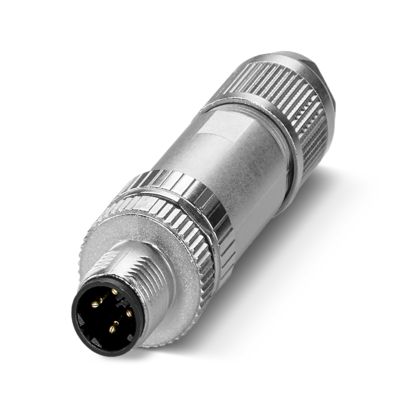

Phoenix Contact – SACC-M12MSD-4PL SH PN M12 PROFINET

Phoenix Contact – SACC-M12MSD-4PL SH PN M12 PROFINET

Description

Model: SACC-M12MSD-4PL SH PN
Type: M12 circular connector (cable-side)
Positions: 4 (PROFINET)
Coding: D-coded
Speed: Up to 100 Mbps (CAT5)
Connection Method: Push-lock spring connection
Shielding: Yes (high EMI protection)
Rated Voltage: 48 V AC / 60 V DC
Rated Current: 4 A
Protection Rating: IP65 / IP67
Cable Diameter: 4 mm – 8 mm
Housing Material: Zinc die-cast, nickel-plated
Contact Material: CuSn with Ni/Au plating
Temperature Range: -40°C to +85°C
Durability: ≥ 100 mating cycles
Standards: IEC 61076-2-101, PROFINET CAT5
