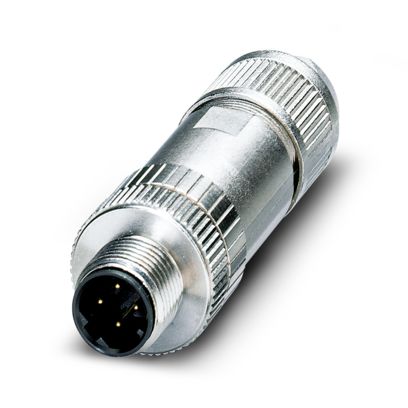

Phoenix Contact – SACC-M12MSD-4Q SH PN M12 Data Connector

• M12 data connector (D-coded) for PROFINET CAT5 (100 Mbps) applications
• 4-position plug, straight type
• Shielded design for stable and reliable data transmission
• Insulation displacement connection (IDC) for quick and easy wiring
• Supports 100 Mbps data speed
• External cable diameter: 4 mm to 8 mm
• Nickel-plated brass housing for durability
• Contact resistance: ≤ 5 mΩ
• Rated voltage: 48 V AC / 60 V DC
• Rated current: 1.75 A
• IP67 protection for industrial environments
• Operating temperature: -40°C to +85°C
• Durable: ≥ 100 insertion cycles
• Complies with PROFINET standards and IEC 61076-2-101
• Ideal for industrial Ethernet and automation systems
