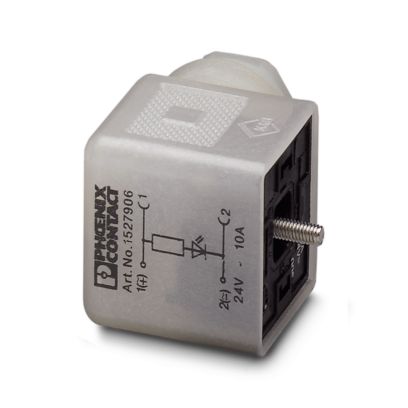

Phoenix Contact SACC-V-3CON-PG9/A-1L 24V

• Type: Valve Connector (Type A)
• Application: Universal / Solenoid valve connection
• Positions: 3
• Connection Type: Screw connection
• Cable Entry: Pg9 (6 – 8 mm cable diameter)
• Voltage: 24 V AC/DC
• Current: 10 A
• Protection: IP65
• Status Indicator: 1 LED
• Protection Circuit: Unwired
• Material: PA 6 housing, CuSn contacts (Ni plated), NBR seal
• Contact Resistance: ≤ 15 mΩ
• Insulation Resistance: ≥ 100 MΩ
• Conductor Size: 0.34 – 1.5 mm² (AWG 22–16)
• Temperature Range: -25°C to +85°C
