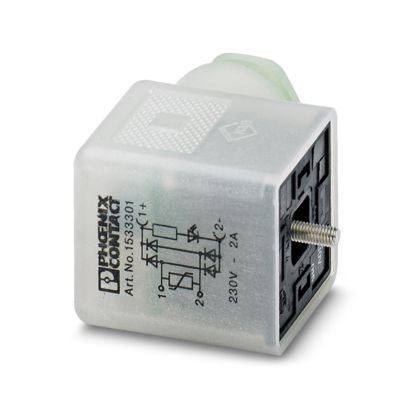

Phoenix Contact SACC-V-3CON-PG9/A-GVL 200/240

Type: Valve Connector (Type A)
Application: Universal / Solenoid valve connection
Positions: 3
Connection Type: Screw connection
Cable Entry: Pg9 (6 – 8 mm cable diameter)
Voltage: 200–240 V AC/DC
Current: 2 A
Protection: IP65
Status Indicator: 1 LED
Protection Circuit: Built-in varistor and rectifier (surge protection)
Material: PA 6 housing, CuZn contacts (Ni plated), NBR seal
Contact Resistance: ≤ 15 mΩ
Insulation Resistance: > 100 MΩ
Conductor Size: 0.34 – 1.5 mm² (AWG 22–16)
Temperature Range: -25°C to +85°C
