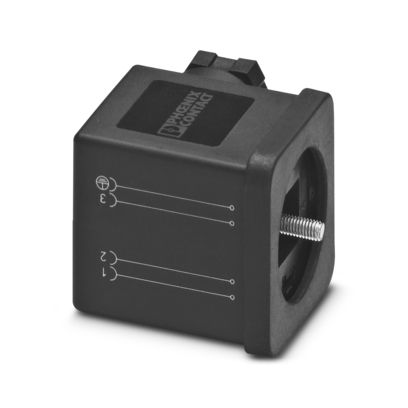

Phoenix Contact SACC-VB-4CON-M16/A
Description
- Type: Valve Connector (Type AD – Pressure Switch)
- Application: Universal / Pressure switch connection
- Positions: 4
- Connection Type: Screw connection
- Cable Entry: M16 (6 – 8 mm cable diameter)
- Electrical Rating:
- Voltage: 230 V AC/DC
- Current: 10 A
- Protection Rating: IP65
- Status Indication: No LED
- Material:
- Housing: PA
- Contacts: CuZn (CuSn plated)
- Seal: NBR
- Performance:
- Contact Resistance: ≤ 4 mΩ
- Insulation Resistance: > 2 GΩ
- Dimensions:
- Width: 28 mm
- Height: 31.5 mm
- Length: 50 mm
- Conductor Size:
- 0.25 mm² – 1.5 mm² (AWG 24–16)
- Temperature Range: -25°C to +60°C
- Standards: EN 175301-803
- Durability: 50 mating cycles
- Features:
- Compact and robust design
- Suitable for pressure switch applications
