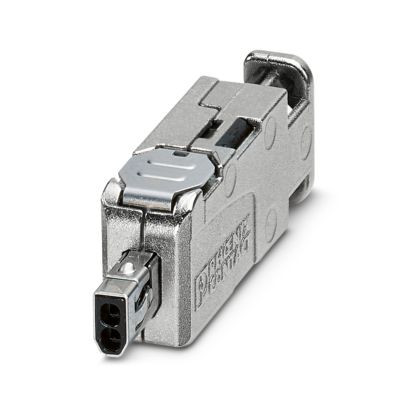

Phoenix Contact SPE-T1-CIM-SF Connector
Description
- Model: SPE-T1-CIM-SF Connector (1343953)
- Type: Single Pair Ethernet (SPE) data connector – cable side
- Design standard: IEC 63171-2, CAT B
- Positions: 2-pin connector
- Transmission speed: Up to 1 Gbps (IEEE 802.3)
- Power support: PoDL (Power over Data Line)
- Connection method: IDC fast connection
- Cable outlet: Straight
- Wire size: AWG 26–22 (0.18–0.45 mm²)
- Shielding: Yes (for stable signal transmission)
- Protection rating: IP20
- Rated voltage/current: 72 V DC / 2 A
- Housing material: Metal with nickel surface
- Contact material: CuSn with gold-plated surface
- Operating frequency: Up to 600 MHz
- Insulation resistance: > 500 MΩ
- Durability: > 750 insertion cycles
- Cable diameter: 3.6 mm – 5.7 mm
- Mounting type: Field assembly
