Phoenix Contact SPE-T1-M8MRM-90 PCB Connector

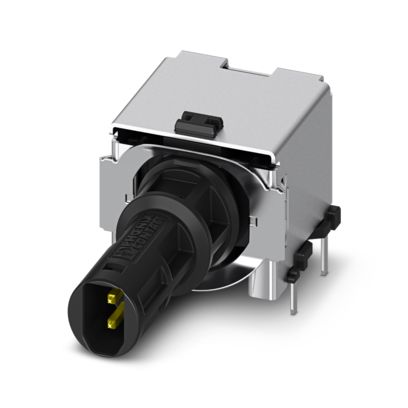

Phoenix Contact SPE-T1-M8MRM-90 PCB Connector
Description
- Phoenix Contact SPE-T1-M8MRM-90 PCB Connector (1163795)
- Type: Single Pair Ethernet (SPE) PCB connector (device side)
- Design standard: IEC 63171-5, CAT B (ISO/IEC 63171)
- Positions: 2-pin, M8 thread
- Protection rating: IP65 / IP67
- Transmission speed: Up to 1 Gbps
- Power: Supports PoDL (Power over Data Line)
- Connection method: THR solder (90° PCB orientation)
- Rated voltage/current: 72 V DC / 4 A
- Housing material: Metal, gold-plated contacts
- Operating temperature: -40°C to +85°C
- High insulation resistance: > 1 TΩ
- Durability: ≥ 100 insertion cycles
