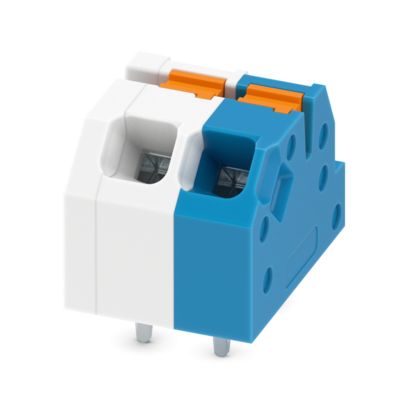

Phoenix Contact SPTAF 1/2-3,5-IL SPE Terminal Block

Phoenix Contact SPTAF 1/2-3,5-IL SPE Terminal Block

Description

Model: SPTAF 1/2-3,5-IL SPE (1548376)
Type: PCB terminal block – COMBICON Terminals S
Positions: 2 positions, single row
Pitch: 3.5 mm
Connection method: Push-in spring connection
Mounting: Wave soldering
Pin layout: Linear pinning (45° conductor/PCB direction)
Nominal current: 16 A
Rated voltage: 160 V
Surge voltage: 2.5 kV
Wire size: 0.2 mm² to 1.5 mm² (AWG 24–16)
Stripping length: 8 mm
Data transmission: Single Pair Ethernet (SPE)
Transmission speed: Up to 10 Mbps (CAT A)
Frequency range: Up to 20 MHz
Housing material: PA, UL 94 V0 rated
Contact material: Copper alloy, tin-plated
Actuating element: Orange, PBT material
Operating temperature: -40°C to +100°C
Dimensions: 8.5 mm (W) × 10.6 mm (H) × 11 mm (L)
Compliance: IEC standards, RoHS compliant
