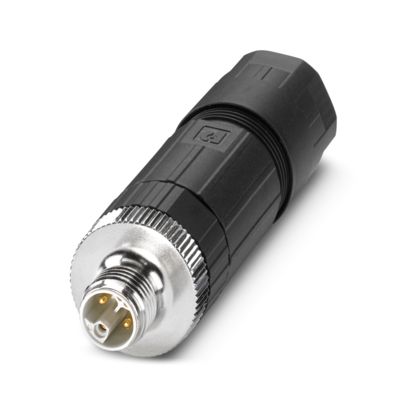

SACC-M12MSL-4FEPL-CL M-Power connector

• Brand: Phoenix Contact
• Product type: Circular connector (cable-side)
• Application: Energy supply (Power)
• Coding: L-coded
• Number of positions: 5
• Head design: Plug (male)
• Thread type: M12
• Cable outlet: Straight

• Nominal voltage: 63 V DC
• Nominal current: 16 A
• Rated surge voltage: 1.5 kV
• Degree of protection: IP65 / IP67
• Operating temperature: −40 °C … +85 °C

• Connection method: Push-lock spring connection
• Cable cross section: 1.5 mm² … 2.5 mm²
• Cable diameter: 8 mm … 13 mm
• Standard: IEC 61076-2-111
