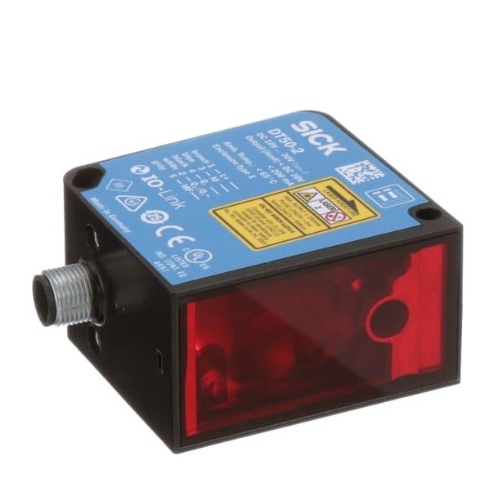

SICK DT50-2B215252 – Time-of-Flight Distance Sensor (Dx50-2)

The SICK DT50-2B215252 is a time-of-flight distance sensor from the Dx50-2 family. It measures from 0.2 m to 30 m on natural objects, with 100 µm resolution and ±7 mm accuracy. A class 2 red laser projects a visible spot, which makes aiming and alignment easy, and the response time can be set from 0.83 ms to 75 ms to balance speed against stability. It suits positioning, distance monitoring, and level detection in logistics, material handling, and automation

Technical Specifications

• Brand: SICK
• Model: DT50-2B215252
• Type: Time-of-Flight Distance Sensor
• Measuring Range: 200 mm to 30,000 mm (90% remission)
• Measuring Range: 200 mm to 17,000 mm (18% remission)
• Measuring Range: 200 mm to 10,000 mm (6% remission)
• Target: Natural objects
• Resolution: 100 µm
• Repeatability: ≥ 0.5 mm
• Measurement Accuracy: ± 7 mm
• Response Time: 0.83 ms to 75 ms (selectable: 0.83 / 3.33 / 8.33 / 25 / 75 ms)
• Typical Light Spot Size: 10 x 10 mm at 10 m
