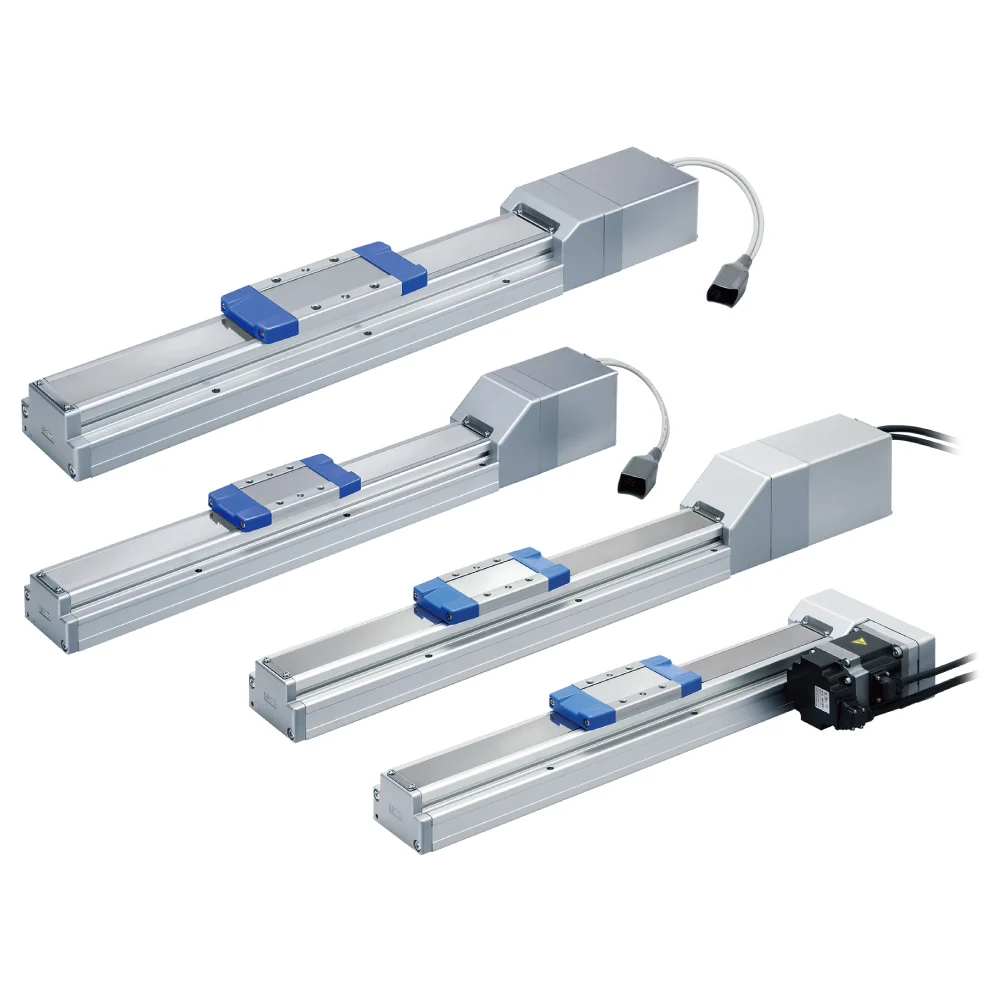

SMC LEKFS Series Electric Actuator Slider High Rigidity Guide

SMC LEKFS Series Electric Actuator Slider High Rigidity Guide

Description

Category: Electric actuators / Motion control
Type: Slider type electric actuator with high rigidity guide
Series: LEKFS, LEKFS16, LEKFS25, LEKFS32, LEKFS40
Guide system: Circular arc grooves for high rigidity and precision
Encoder: Battery-less absolute encoder (no battery maintenance)
Motor options: Step motor (24 VDC) and AC servo motor
Stroke range: 50 to 1200 mm (model dependent)
Work load: Up to 65 kg (step motor), up to 60 kg (servo motor)
Speed: Up to 1500 mm/s
Positioning repeatability: ±0.01 mm
Performance: Up to 61% improved moment resistance
Accuracy: Up to 50% reduced table displacement
Function: Restart from last stop position after power recovery
